AC Gearhead Motors

26 RPM 45 VAC GEARMOTOR. Removed from service. Inline parallel shaft gearmotor. Mounting holes are drilled and tapped. Specifications; RPM 26, Voltage 45 VAC, Amps 0.600 (no load), Rotation CW, Duty Int. 4 hole face mount on 1-9/16" x 1-5/8" centers. Shaft 3/16" diam. x 5-1/4" w/ 10-32 threaded end. Overall Size 1-1/4" x 2-1/2" x 4-7/8" weighs 2 lbs.

Reversible miniature Haydon gearhead motor. Delivers 3.6 RPM at 20VAC. 0.125" diameter. The shaft is 0.30" long. The motor is 1.07" diameter x 1.23" long. Four 6" leads. Two leads for each direction.

30 RPM 115VAC (.03A) gearmotor. New factory surplus. gearmotor. Motor typically rotates CW, by design it will sometimes rotate CCW. Rotation varies. Constant duty. Shaft 5/32" square, 1/4" long. Four bolt mount on 2-1/4" B.C. Overall size 2" dia. x 7/8" long. 1,500 available.

43 x Dayton 6Z404 Parallel Shaft AC Gearmotors for sale. Motors are used and in good working condition. These motors deliver 18 RPM, Input Power 1/3 HP, Gear Ratio 95:1, Voltage @ 60 Hz 208-230/460. Shaft: 3-3/4" x 1-1/2". Weight: 27 pounds.

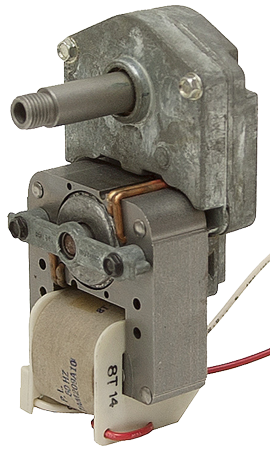

Merkle-Korff 3715UP-250 120VAC compact gearmotors. Speed: 15 RPM, voltage: 115 AC, amperage: 2.7 Amps, power: 97 Watts @ idle. Thermally protected, shaded pole motor. Rotation CW, duty Intermittent (1 minute max on time). Face Mount 3 untapped bosses. Metal gear housing. Shaft: threaded end 5/16"-18 LH; base end 3/8" dia. x 3/8" long; overall length 15/16". Dimensions: 3-3/8" x 2-1/2" x 4".

Bodine Electric inline gearmotor includes run & start capacitors. Requires relay (not incl.) for start capacitor. Voltage: 115 AC, amperage: 9.9 Amps, power: 440 Watts, torque: 44 in - lbs. Continuous duty, CW rotation, open enclosure. Overall size: 5-1/2" x 10-1/2" x 5-1/2". Shaft: 16MM x 3-1/2" w/keyway. Mount: face 3-5/8" x 3-5/8".

Molon model LIM-30146-3 135 RPM inline gearmotor, external 1.25 mFd, 440 VAC run capacitor included. 115 VAC, 0.1 amps. Reversible rotation, duty intermittant. Torque: 58 in oz. approx, gear ratio 2:1. Mount: two 4mm tapped holes on face, 2-11/16" c/c. Shaft: 1/4" dia. x 3/8" w/ flat, overall size: Size 1-7/8" x 2-3/8" x 2-3/8".

Surplus Dynetic Systems 220028D motors and gearhead assemblies for use with Baxter Travenol peristaltic blood pumps. Specifications: 36V 3.5A generator volt graduation 14.0 DCV/KRPM. 13 available.

120VAC inline parallel shaft Brevel gearmotors. 80 RPM, 2 amps, CW rotation, duty intermittent. Shaft: 3/8" diam. x 3/4" w/ flat. 4 hole face mount 1-9/16" x 1-1/4" centers. Overall dimensions: 3-1/8" x 2-1/2" x 4-3/8".

NCR's AXIOHM Thermal/Impact Ptr W/2 Color, USB/RS232, MICR, Knife Model A760-2215

This list contains a wide selection of circuit breakers, magnetic flow meters, solenoids, switches and much more. May be subject to a minimum order requirement. Click MORE INFO to view the list in it's entirety.

With a CW rotation, this 120VAC, 4A, 62RPM Gearmotor has a open style aluminum housing and 4 mounting holes for installation. 1/2" Shaft diameter, 1-1/2" hollow threaded, and a overall size of 2-1/2" x 2" x 5-3/4". Over 2000 units available. Looking for offers on quantity.

With a CW rotation, this 120VAC, 2A (no load), 80RPM inline shaft gearmotor has 4 mounting holes for face mount installation. 3/8" Shaft diameter x 3/4", and a overall size of 3-1/8" x 2-1/2" x 4-3/8". Over 600 units available. Looking for offers on quantity.

Inline 115VAC, 135RPM, 0.1A, reversible gearmotor with 58 in oz torque and a gear ratio of 2:1 has a 1.25 mFd 440VAC run capacitor included. Shaft size of 1/4" diameter x 3/8" and an overall size of 1-7/8" x 2-3/8" x 2-3/8". 2 tapped 4mm holes allow an easy installation. Looking for offers on quantity.

This 115VAC, 743RPM, 9.9A inline gearmotor with open type enclosure features a continuous CW rotation, 440W - 44in lbs torque and a gear ratio of 2.42:1. Shaft size of 16mm x 3-1/2" with keyway, and a mounting face of 3-5/8" x 3-5/8". Overall size of 5-1/2" x 10-1/2" x 5-1/2" and comes with run and start capacitors (relays not included). Looking for offers on quantity.
