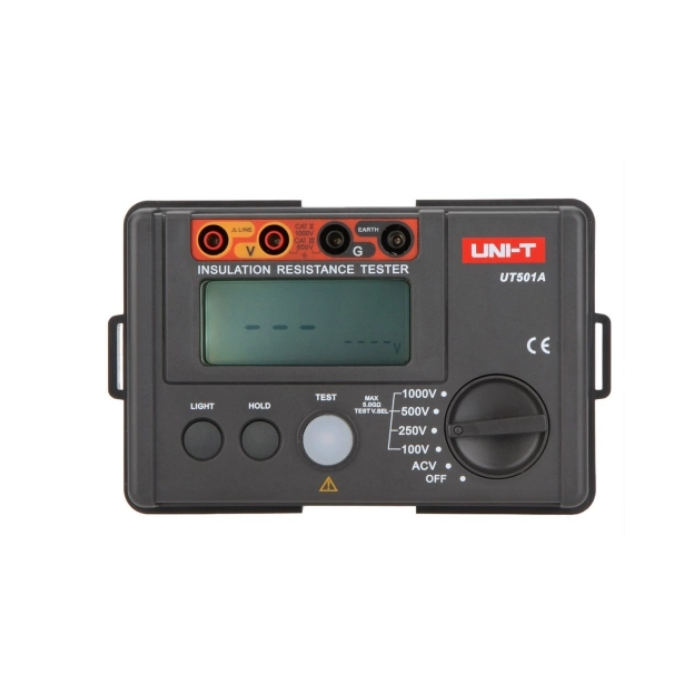

UNI-T UT501A
- Product SKU: UNI-T UT501A
- Product Name: UNI-T UT501A
UNI-T UT501A 1000V Insulation Resistance Meter Ground Tester Megohmmeter Voltmet Features: Display Count: 2000 Automatic measurement: √ Low Battery Indication: √ LCD Backlight: √ Alarm Light Display: √ Alarm Buzzer: √ High Voltage Indication: √ Over Load Indication: √ Auto Disharge: √ Test Voltage Vice Display: √ 10MΩ Internal Resistance Test: √ Specifications: Model: UT501A Insulation Resistance(Ω): Test Voltage: 100V/250V/500V/1000V 0%~10% 100V: 0.00MΩ~100MΩ ±(3%+5) 250V: 0.00MΩ~99.9MΩ ±(3%+5) ; 100MΩ~5.5GΩ ±(5%+5) 500V: 0.00MΩ~99.9MΩ ±(3%+5) ; 100MΩ~5.5GΩ ±(5%+5) 1000V: 0.00MΩ~99.9MΩ ±(3%+5) ; 100MΩ~5.5GΩ ±(5%+5) Load Current: 50V(R=50KΩ) 1mA 0%~10% ; 100V(R=100KΩ) 1mA 0%~10% ; 250V(R=250KΩ) 1mA 0%~10% 500V(R=500KΩ) 1mA 0%~10% ; 1000V(R=1MΩ) 1mA 0%~10% Short Circuit Current: <2mA AC Voltage (V): 30V~750V ±(2%+3)
- Product Availability: Available
