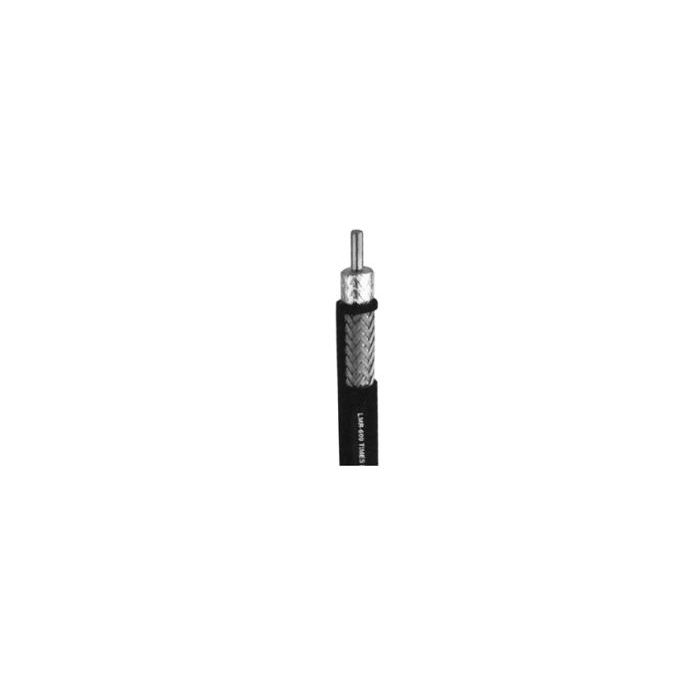

Times Microwave LMR-600 Flexible Low Loss Communications Coax

Times Microwave LMR-600 Flexible Low Loss Communications Coax
  • Product SKU: YD911
  • Product Name: Times Microwave LMR-600 Flexible Low Loss Communications Coax
Description:

Ideal for Jumper Assemblies in Wireless Communications Systems
Short Antenna Feeder runs
Any application (e.g. WLL, GPS, LMR, WLAN, WISP, WiMax, SCADA, Mobile Antennas) requiring an easily routed, low loss RF cable
Inner Conductor Solid BCCAl 0.176 in
Dielectric Foam PE 0.455 in
Outer Conductor Aluminum Tape 0.461 in
Overall Braid Tinned Copper 0.490 in
Velocity of Propagation % 85
Dielectric Constant NA 1.32
Time Delay nS/ft (nS/m) 1.17
Impedance ohms 50
Capacitance pF/ft (pF/m) 23.4
Inductance uH/ft (uH/m) 0.058
Shielding Effectiveness dB >90
DC Resistance
Inner Conductor ohms/1000ft (/km) 0.53
Outer Conductor ohms/1000ft (/km) 1.2
Voltage Withstand Volts DC 4000
Jacket Spark Volts RMS 8000
Peak Power kW 40

  • Product Availability: Available
