THE WORLD'S SMALLEST MICROPHONE! YOU HAVE TO SEE IT TO BELIEVE IT!
- Product SKU: WA033
- Product Name: THE WORLD'S SMALLEST MICROPHONE! YOU HAVE TO SEE IT TO BELIEVE IT!
- Manufacturer: KNOWELS ACCOUSTICS
- Manufacturer Spec File: wa033.pdf

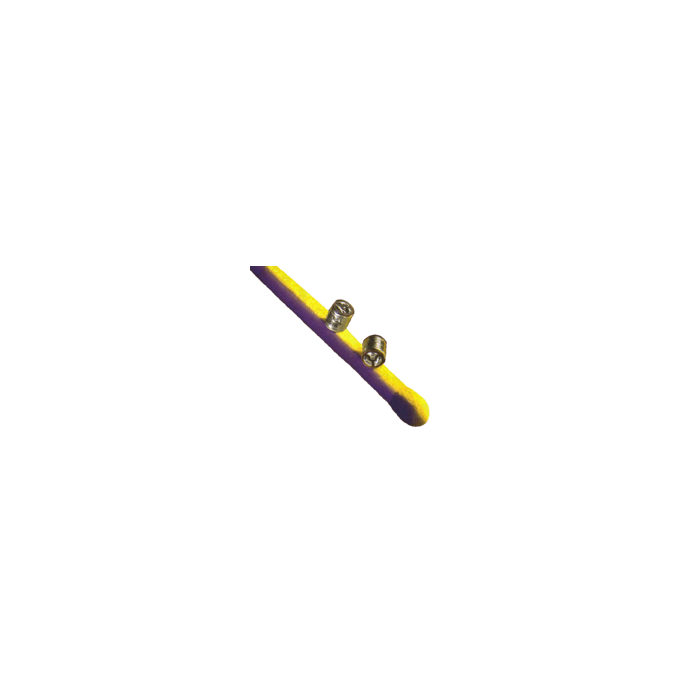

The world's smallest omnidirectional microphone. Rugged construction to withstand severe environmental conditions. High resistance to mechanical shock Cylindrical shape and compact size provide for superior fit rates. Exceptionally low vibration sensitivity. Various responses available. Integral RFI suppression. Power Requirements. Supply Voltage (Vs): 1.3VDC (typical) Quiescent Current Drain (@ Vs=1.3VDC): 24µA (typical). Performance. Sensitivity Range: ±3dB at 1.0kHz Output Impedance @ 1kHz: 4.4k? (nominal) Load Voltage (VL): 0.5VDC (typical)
Mechanical
Weight: 0.08 grams Dimensions: 2.565 dia. x 2.565mm Case Material: Type 305 stainless steel Solder Content: Sn63Pb37
Marshall 450-902-0489 or by email . $39Ea/
- Product Availability: Available
Mechanical
Weight: 0.08 grams Dimensions: 2.565 dia. x 2.565mm Case Material: Type 305 stainless steel Solder Content: Sn63Pb37
Marshall 450-902-0489 or by email . $39Ea/
