Locks, Keys and Key Switches

Seems some sort of cabinet key lock. As pictured.

Rated 2.5A@ 125VAC or 28VDC. Includes hex nut and two keys.

Nice little SPST key switch c/w two keys and mounting nut. Panel mount requires 1/2" dia. hole. Extends 1-1/8" behind panel. Key can be removed in either switch position.

C&K keyswitch Y100AA-2-R-2-WC-N-B. High quality unit. 4 wire leads Mounts in 3/4" hole. Complete with two keys.

SPST key switch. Uses barrel key which can be removed in both positions. Contact rating 4A @ 120VAC. 2A @ 250VAC. Screw terminals. 2 keys included. Requires 3/4 hole (2 flat sides to prevent rotation).

Round high security keylock switches. Especially popular for alarm systems. Both mount in 3/4" dia. holes. 1-11/16" deep. Capable of handling 3 amps at 110VAC. Solder terminals. Each comes with two keys. (MG162) SPST MOMENTARY (MG163) SPST ON/OFF

Sometimes called a shunt lock. Complete with 2 keys and mounting hardware. Screw terminals. Used with most alarm equipment. Rated 4A@125VAC or 2A@250VAC. Mounts in 1.8” deep hole. Bushing length to connectors 1.8” deep. .75” dia hole. Key removable in both on and off position. Imported for ongoing availability.

Rated 2.5A@125VAC or 2.1A@46VDC. Mounts in 7/8" dia. hole. Screw terminals. Provided with two keys. Keys will pull out in either on or off position. Mounting hardware included. 5 different keys available on special order. Keys can be removed in either position.

DPST, off position only barrel key switch. Current Rating: 4A@125V AC OR 2A@250V AC. Initial contact resistance is 10 meg ohms. Insulation resistance 500VDC 100 meg ohm. Dielectric strength is 1000V AC for 1 Minute. Nickel plated brass contact material. Solder terminals. (If you require a DPST On or Off position version order MG292. Same price)

Yes. If you have excess inventory of keylock switches, we are interested. Please fax your inventory listing to Ted at Surplus Traders. 450-902-0495.

This is a high quality keylock switch made by C&K for Zenith cable TV boxes. Only 1" in length excluding terminals. Mounts in a 3/4" dia hole. Each brass key is unique. If you buy five locks each one will have its own key which will not operate another lock. Key can only be removed in one position. Brand new but unfortunately we do not have the panel mounting nut.

This is a rotary keylock switch. Features 3 pole, 3 position rotary switch operated by a key. Key can be removed in positions 1 and 3 but not in position 2. Comes with panel mounting nut and bezel. Contacts rated 2.5amps @ 120VAC switching or 5 amps continuous carry. Silver plated contacts and terminals. High quality, precision made. Each comes with hardware and 2 keys. Made by C & K.

This lockswitch features a single pole 4 position rotary switch. Includes two metal keys. Key can be removed in any position except position 2. Mounts in a 0.6" hole plus 2 small holes (one on either side) to allow for mounting bolts (not included). Brand new. Size approximately 1.56" x 1.84"L.

Very useful accessory extends the life of standard key switches.

Securitron M-32 Series Magnalock features 600 lbs. holding force with automatic dual voltage. Recommended for applications where physical assault on the door is not expected, like access controlled interior rooms and secure areas within buildings.Current Draw and Voltage: 300mA at 12VDC; 150mA at 24VDCOperating Temperature: -40 to +140F [-40 to +60C]

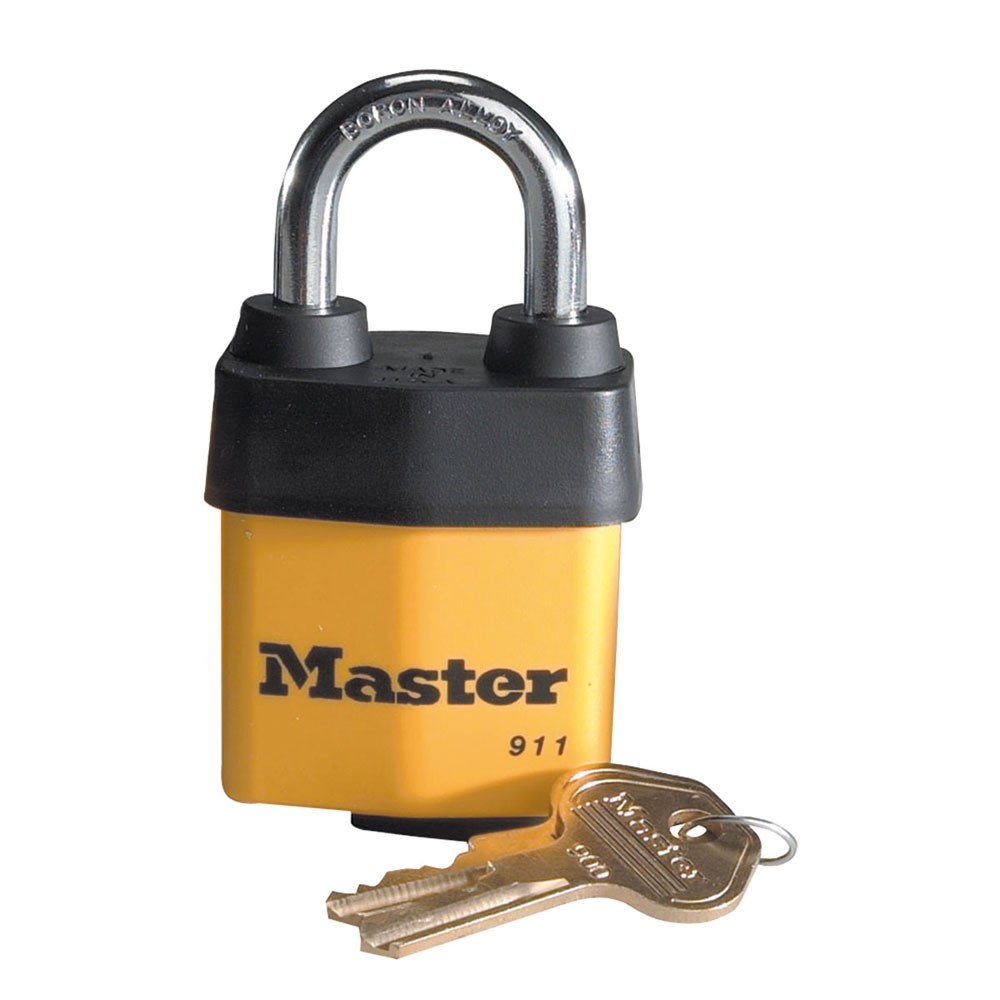

Many locks to choose from by Master Lock Company and Walter Kidde Safety! Our list is changing daily call us for a current availibility!
