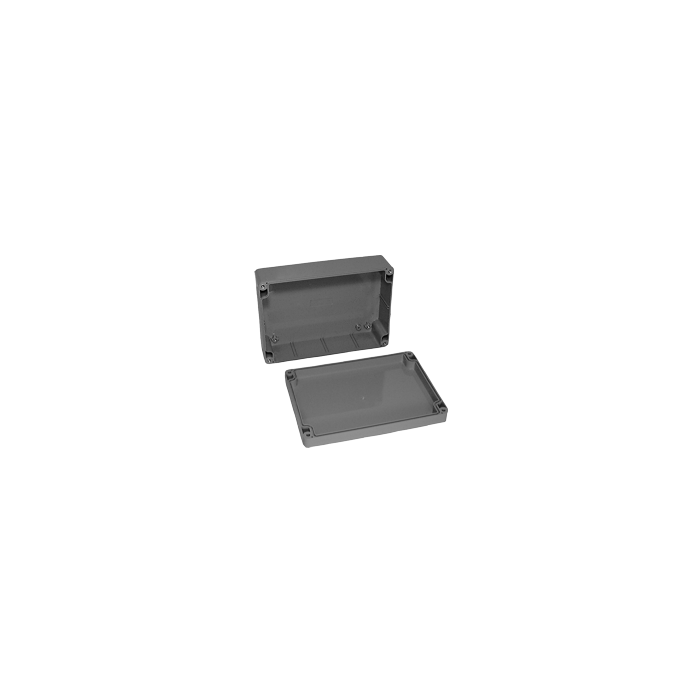

SEALED ABS ENCLOSURES
- Product SKU: GD424
- Product Name: SEALED ABS ENCLOSURES
- Manufacturer: -ASSORTED
These cases have many uses in the electrical & electronic industries. Easily drilled or punched, making them ideal as circuit enclosures and junction boxes. Features: tongue & groove sealing system w/neoprene gasket, wall mounting holes & lid fixing screws outside sealing area, internal slots for mounting PC boards vertically and bosses on internal base allow fixing of PC boards horizontally, M4 stainless steel lid-fixing screws which thread into brass inserts. Designed to meet IP65 of IEC529 & NEMA 4 specs for dust & moisture. Operating temps: -20º - +80ºC. Dark gray.
| Part No. | L | W | H |
|---|---|---|---|
| GD425 | 4.5" | 2.55" | 1.158" |
| GD426 | 4.5" | 3.54" | 2.165" |
| GD427 | 6.75" | 4.75" | 2.165" |
Condition: New
- Product Availability: Available
| Part No. | L | W | H |
|---|---|---|---|
| GD425 | 4.5" | 2.55" | 1.158" |
| GD426 | 4.5" | 3.54" | 2.165" |
| GD427 | 6.75" | 4.75" | 2.165" |
Condition: New
