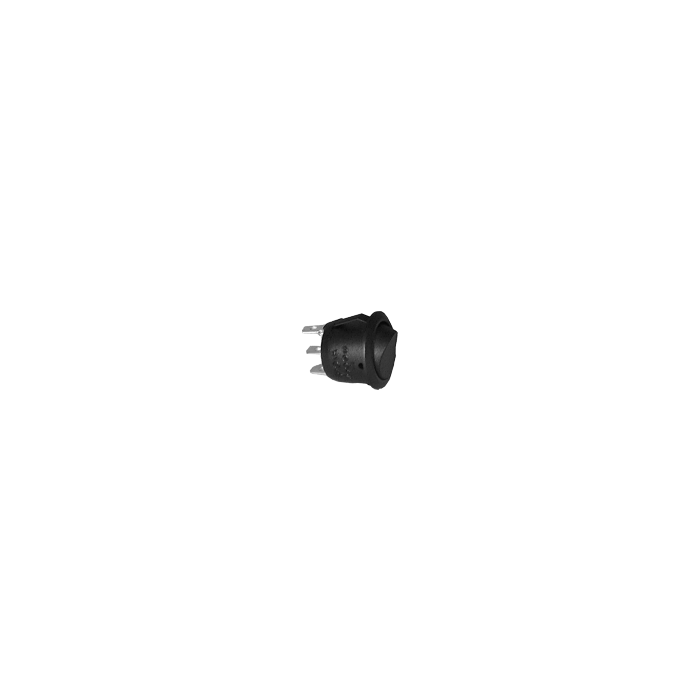

ROUND SNAP-IN ROCKER SWITCH
- Product SKU: GG193
- Product Name: ROUND SNAP-IN ROCKER SWITCH
- Manufacturer: PHILMORE
6A 250VAC, 10A 125VAC SPST round snap-in rocker switches. Initial contact resistance: <50Meg Ohms @ 12VDC, Insulation resistance: >100Meg Ohms, Dielectric strength (open contacts): >1500V for 1 min. Silver plated brass contact material with copper alloy terminal material. Body, actuator & bezel material: Nylon (UL 94V-2). Terminal type: .187" quick connect. Panel cut-out: 20.2mm (.79"). Max. panel thickness 3.0mm. All have black actuators except GG194, which has a bi-color actuator. Click "more info" for diagram.
| Part No. | Action |
|---|---|
| GG194 | On-Off |
| GG195 | (On)-Off |
| GG196 | On-(Off) |
| GG198 | On-Off-(On) |
| GG199 | On-On |
| GG200 | On-Off-On |
| TS777 | (On)-Off-(On) |
Condition: New
