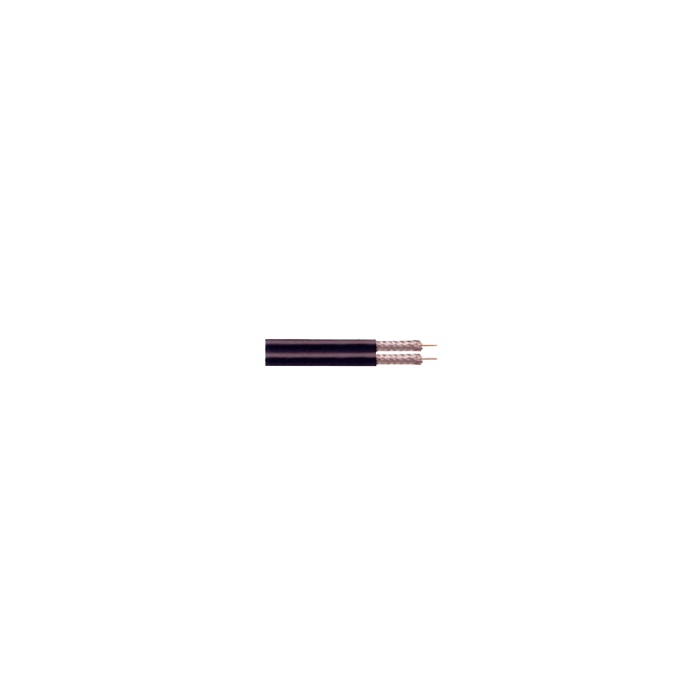

RG6/U 18 AWG SIAMESE CABLE
- Product SKU: GE904
- Product Name: RG6/U 18 AWG SIAMESE CABLE
- Manufacturer: VANCO
Suitable for broadband applications, this RG6/U 18AWG, 1.02mm Siamese cable had heavy-duty shielding for superior performance. Copper-clad steel center conductor, Dielectric: 4.57 mm Gas Foam PE. Braid: 60%, coverage, Al-MG Strands, 80/.12 mm. Central conductor DC resistance: 6.5 Ohm, 1000 ft. Shield: 100% bonded Al-Poly film overlap, Shield DC resistance: 10.5 Ohm, 1000 ft. Velocity of propagation: 82%, Impedance: 75 Ohm, +/- 3. PVC: Rated to - 40º C to 75º C. Swept test to 2.2 GHz, Jacket: 6.86 mm flame fetardant PVC jacket. UL listed. Packaged on spools of 500 ft. Condition: New
- Product Availability: Available
