MOTOMAN UP20 ROBOT YASNAC XRC AND TWIN K6 ROBOTS YASNAC MRC WELDING CELL

Motoman UP20 robot Welding cell has the following parts: Robot Model Number: UP20, Type: YR-UP20-A0...
Read More
  • Product SKU: YC506
  • Product Name: MOTOMAN UP20 ROBOT YASNAC XRC AND TWIN K6 ROBOTS YASNAC MRC WELDING CELL
  • Manufacturer: -ASSORTED
Description:

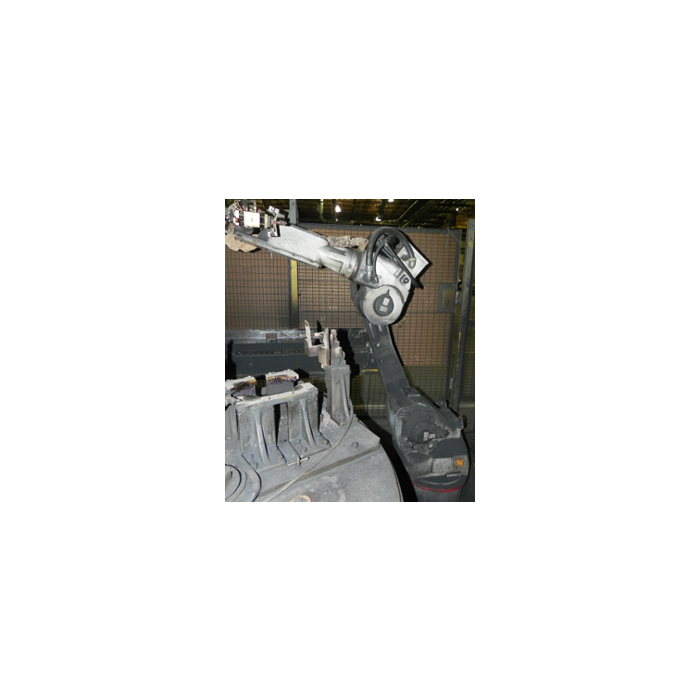

Motoman UP20 robot Welding cell has the following parts:
Robot Model Number: UP20, Type: YR-UP20-A02, 20kg payload, with Yasnac XRC UP20 controls type: ERCR-UP-A02
Twin Robot Model Number: K6+K6 with Yasnac MRC K6+K6 controls type: ENCM-RM
Motoman Rotating Table: 6' x 4'

Part specifications:
UP20 Robot: Axes: 6, Payload: 44.9lbs, V-Reach: 116.02", H-Reach: 65.28", Repeatability: +-.0024", Robat Mass: 280lbs.

UP20 Robot Motion Speed: S-Axis: 165 Degrees/S, L-Axis: 165 Degrees/S, U-Axis: 165 Degrees/S, R-Axis: 335 Degrees/S, B-Axis: 335 Degrees/S, T-Axis: 510 Degrees/S.

UP20 Robot Motion Range: S-Axis: +-180 Degrees, L-Axis: 155-110, U-Axis: 210-80, R-Axis: +-190 Degrees, B-Axis: 230-50, T-Axis: +-360 Degrees

K6+K6 Robot: Axes: 6, Payload: 13.23lbs, H-Reach: 52.05", Repeatability: +-.0039", Robat Mass: 180lbs

K6+K6 Robot Motion Speed: S-Axis: 110 Degrees/S, L-Axis: 90 Degrees/S, U-Axis: 110 Degrees/S, R-Axis: 240 Degrees/S, B-Axis: 240 Degrees/S, T-Axis: 400 Degrees/S

K6+K6 Robot Motion Range: S-Axis: +-340 Degrees, L-Axis: +- 240 Degrees, U-Axis: +- 270 Degrees, R-Axis: +- 360 Degrees, B-Axis: +- 270 Degrees, T-Axis: +- 400 Degrees

Additional pictures available upon request. Looking for offers. Condition: Used

  • Product Availability: Available
SKU
YC506

Read Our Reviews

4.4
Based on 2714 reviews from certified buyers.
  • Thank you Marshall

    With small delay due to UPS but ok.

    By Paul Tremond on

  • Good to know you

    I strongly recommend this site for business opportunities.

    By Keith Rice on

  • No one else had it

    I will personally recommend surplustraders to my friends. Best service around.

    By Carl Moore on

Add to Wishlist
main product photo

How can I help you?

Hi, I'm Marshall Duskes. Click on , pick up the phone, or use one of the other platforms here to get in touch with me about this product.

Toll Free:866-266-7638

International:514-619-6981

Motoman UP20 robot Welding cell has the following parts:
Robot Model Number: UP20, Type: YR-UP20-A02, 20kg payload, with Yasnac XRC UP20 controls type: ERCR-UP-A02
Twin Robot Model Number: K6+K6 with Yasnac MRC K6+K6 controls type: ENCM-RM
Motoman Rotating Table: 6' x 4'

Part specifications:
UP20 Robot: Axes: 6, Payload: 44.9lbs, V-Reach: 116.02", H-Reach: 65.28", Repeatability: +-.0024", Robat Mass: 280lbs.

UP20 Robot Motion Speed: S-Axis: 165 Degrees/S, L-Axis: 165 Degrees/S, U-Axis: 165 Degrees/S, R-Axis: 335 Degrees/S, B-Axis: 335 Degrees/S, T-Axis: 510 Degrees/S.

UP20 Robot Motion Range: S-Axis: +-180 Degrees, L-Axis: 155-110, U-Axis: 210-80, R-Axis: +-190 Degrees, B-Axis: 230-50, T-Axis: +-360 Degrees

K6+K6 Robot: Axes: 6, Payload: 13.23lbs, H-Reach: 52.05", Repeatability: +-.0039", Robat Mass: 180lbs

K6+K6 Robot Motion Speed: S-Axis: 110 Degrees/S, L-Axis: 90 Degrees/S, U-Axis: 110 Degrees/S, R-Axis: 240 Degrees/S, B-Axis: 240 Degrees/S, T-Axis: 400 Degrees/S

K6+K6 Robot Motion Range: S-Axis: +-340 Degrees, L-Axis: +- 240 Degrees, U-Axis: +- 270 Degrees, R-Axis: +- 360 Degrees, B-Axis: +- 270 Degrees, T-Axis: +- 400 Degrees

Additional pictures available upon request. Looking for offers. Condition: Used
  • Product SKU: YC506
  • Product Name: MOTOMAN UP20 ROBOT YASNAC XRC AND TWIN K6 ROBOTS YASNAC MRC WELDING CELL
  • Manufacturer: -ASSORTED
Description:

Motoman UP20 robot Welding cell has the following parts:
Robot Model Number: UP20, Type: YR-UP20-A02, 20kg payload, with Yasnac XRC UP20 controls type: ERCR-UP-A02
Twin Robot Model Number: K6+K6 with Yasnac MRC K6+K6 controls type: ENCM-RM
Motoman Rotating Table: 6' x 4'

Part specifications:
UP20 Robot: Axes: 6, Payload: 44.9lbs, V-Reach: 116.02", H-Reach: 65.28", Repeatability: +-.0024", Robat Mass: 280lbs.

UP20 Robot Motion Speed: S-Axis: 165 Degrees/S, L-Axis: 165 Degrees/S, U-Axis: 165 Degrees/S, R-Axis: 335 Degrees/S, B-Axis: 335 Degrees/S, T-Axis: 510 Degrees/S.

UP20 Robot Motion Range: S-Axis: +-180 Degrees, L-Axis: 155-110, U-Axis: 210-80, R-Axis: +-190 Degrees, B-Axis: 230-50, T-Axis: +-360 Degrees

K6+K6 Robot: Axes: 6, Payload: 13.23lbs, H-Reach: 52.05", Repeatability: +-.0039", Robat Mass: 180lbs

K6+K6 Robot Motion Speed: S-Axis: 110 Degrees/S, L-Axis: 90 Degrees/S, U-Axis: 110 Degrees/S, R-Axis: 240 Degrees/S, B-Axis: 240 Degrees/S, T-Axis: 400 Degrees/S

K6+K6 Robot Motion Range: S-Axis: +-340 Degrees, L-Axis: +- 240 Degrees, U-Axis: +- 270 Degrees, R-Axis: +- 360 Degrees, B-Axis: +- 270 Degrees, T-Axis: +- 400 Degrees

Additional pictures available upon request. Looking for offers. Condition: Used
