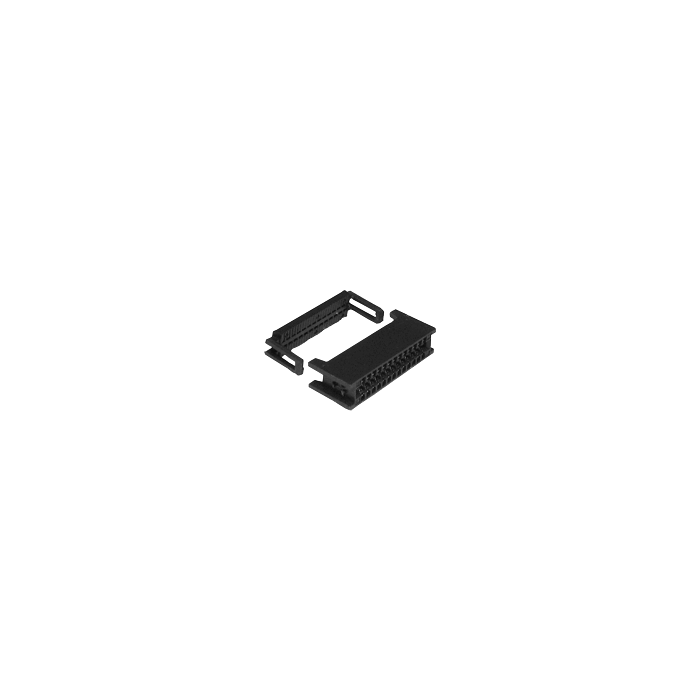

INSULATION DISPLACEMENT CARD EDGE CONNECTORS - 14 TO 50 CONTACT AVAILABLE
- Product SKU: GF422
- Product Name: INSULATION DISPLACEMENT CARD EDGE CONNECTORS - 14 TO 50 CONTACT AVAILABLE
- Manufacturer: PHILMORE
Contacts adjust to compensate for P.C. board thickness. Contact resistance: 30m ohm max. at DC 100mA. Insulator resistance: 1000m ohm min. at DC 500V. Voltage: AC 500V for 1 minute. Current rating: 1 Amp Dielectric Withstanding. Contacts are phosphor bronze, housing is PBT and 30% Glass Fiber (UL 94V-0). Click "more info" for schematic of the A, B, and C dimensions.
Part No. | Contacts | Dim. A | Dim. B | Dim. C |
---|---|---|---|---|
GF423 | 14 | 1.073 | .816 | .600 |
GF425 | 20 | 1.374 | 1.127 | .900 |
GF426 | 26 | 1.673 | 1.416 | 1.200 |
GF427 | 34 | 2.073 | 1.815 | 1.600 |
GF428 | 40 | 2.373 | 2.115 | 1.900 |
GF429 | 50 | 2.973 | 2.616 | 2.400 |
Condition: New
