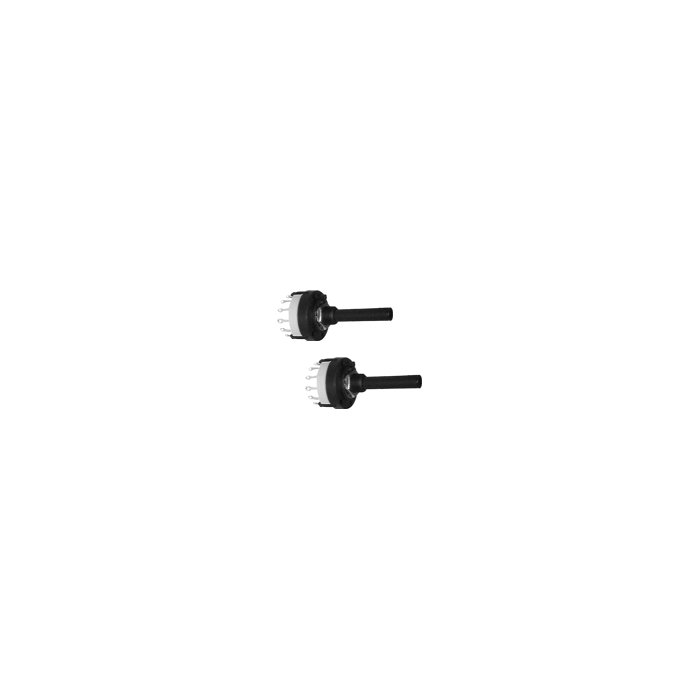

ENCLOSED CONTACT ROTARY SWITCHES
Contact rotary switches, enclosed, non-shortening type. These switches have a current rating of 0.3A...
Read More
- Product SKU: GD733
- Product Name: ENCLOSED CONTACT ROTARY SWITCHES
- Manufacturer: PHILMORE
Contact rotary switches, enclosed, non-shortening type. These switches have a current rating of 0.3A @ 125V AC and initial contact resistance of 20 Meg ohm (MAX.) Insulation resistance is DC500V-100 Meg ohm (min.) and withstand voltage is AC500V-1 minute. Rotation torque: 1.0 +/- 0.5 kg/om. Shaft: 38mm length, 6.35mm O.D. Terminal type: solder.
| Part No. | No. Pole | No. Position |
|---|---|---|
| GD734 | 3 | 3 |
| GD735 | 1 | 12 |
| GD735 | 1 | 6 |
| GD737 | 2 | 3 |
| GD738 | 3 | 4 |
| GD739 | 4 | 3 |
Condition: New
- Product Availability: Available
SKU
GD733
Contact rotary switches, enclosed, non-shortening type. These switches have a current rating of 0.3A @ 125V AC and initial contact resistance of 20 Meg ohm (MAX.) Insulation resistance is DC500V-100 Meg ohm (min.) and withstand voltage is AC500V-1 minute. Rotation torque: 1.0 +/- 0.5 kg/om. Shaft: 38mm length, 6.35mm O.D. Terminal type: solder.
Condition: New
| Part No. | No. Pole | No. Position |
|---|---|---|
| GD734 | 3 | 3 |
| GD735 | 1 | 12 |
| GD735 | 1 | 6 |
| GD737 | 2 | 3 |
| GD738 | 3 | 4 |
| GD739 | 4 | 3 |
Condition: New
- Product SKU: GD733
- Product Name: ENCLOSED CONTACT ROTARY SWITCHES
- Manufacturer: PHILMORE
Contact rotary switches, enclosed, non-shortening type. These switches have a current rating of 0.3A @ 125V AC and initial contact resistance of 20 Meg ohm (MAX.) Insulation resistance is DC500V-100 Meg ohm (min.) and withstand voltage is AC500V-1 minute. Rotation torque: 1.0 +/- 0.5 kg/om. Shaft: 38mm length, 6.35mm O.D. Terminal type: solder.
| Part No. | No. Pole | No. Position |
|---|---|---|
| GD734 | 3 | 3 |
| GD735 | 1 | 12 |
| GD735 | 1 | 6 |
| GD737 | 2 | 3 |
| GD738 | 3 | 4 |
| GD739 | 4 | 3 |
Condition: New
