Barrel Jack Connectors

Quick mounting PCB DC power jack with built in spst switch. Accepts 5.5/2.1mm and 5.0/2.1mm barrel connectors.

6' two conductor 20AWG wall transformer cord with molded on strain relief. Stripped and tinned leads. On the other end is a 5.5/2.5mm straight barrel jack. Declared excess by wall transformer manufacturer.

6' two conductor 24AWG cord with blunt cut end. On the other end is a 5.5/2.5mm straight barrel jack. Bulk packed.

SWITCHCRAFT RAPC722 Connector, DC, power port

This is a single hole panel mount receptacle for the popular 2.1mm wall transformer barrel jacks. (It accepts both 5.0 & 5.5mm OD jacks) (We also have the 2.5mm version ME984 - same price) These all metal jacks mount in a 7/16" dia hole in panels up to 3/16" thick.

Cobra 771-026. 3.5/1.3mm jack is a snug fit. 3 leads. 9mm wide x 13mm long x 7mm high. As pictured.

As pictured. Accepts 1.3/3.5mm barrel jack. Cobra part 771-015.

Cobra 771-030. 3.5/1.3mm jack is a snug fit. Shielded. 3 solder tabs. 10mm wide x 13mm long x 7mm high. As pictured.

Cobra 771-016. 3.5/1.3mm jack is a snug fit. 3 leads. 5mm wide x 9mm long x 6mm high. As pictured.

As pictured. Accepts 1.3/3.4mm barrel jack. Cobra part 771-040

Cobra 777-097-9-001. 3.5/1.3mm jack is a snug fit. 3 leads. 6mm wide x 12mm long x 10mm high. As pictured.

Attention OEMs. 17 different types and sizes to choose from. Both metal and plastic bodies. We can match any size connector. OEMs PLEASE CALL FOR LARGE QUANTITY QUOTES.

2.1 mm (center pin diameter) chassis mount jack with integrated spst n/c switch which goes to "open" when the dc plug is inserted.

2.5mm (center pin diameter) chassis mount jack with integrated spst n/c switch which goes to "open" when the dc plug is inserted.

Up to now these were almost impossible to find. Each has a center pin to mate with a corresponding barrel jack. Solder lug terminals and flexible plastic strain relief. Black. Use to make up extension cords etc. We have available 8 different sizes.

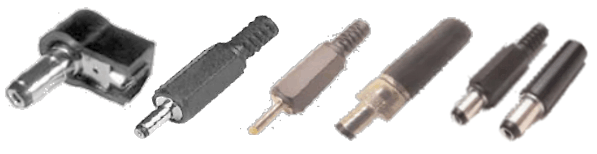

We have barrel jacks in all sizes and shapes. Right angle types, Straight types, Long shank types, Center pin types and locking types. Over 29 types to choose from. Please click the picture for a larger view. Click the "more info button to see the whole assortment. If you need more than 100 per type please contact Ted for quote. Call 514-739-8723

WE FOUND THEM!!!! Two conductor black zip cord with stripped and tinned leads. On the other end is a popular straight barrel plug with a male center pin. These mate with the millions upon millions of barrel jacks in use everywhere. Ideal for making up extension or adapter cords. Part No. Connector Gauge Cord length MG104 5.5/2.1mm 22 6' GD714 5.5/2.1mm 18 6' MG457 5.5/2.1mm 22 12" TH710 5.5/2.1mm 22 6' GD715 5.5/2.5mm 18 6' TS706 3.5/1.3mm 22 6'

These little critters are just what the doctor ordered when you have the right voltage wall transformer - but it has the wrong size connector. Simply snap on the appropriate converter plug. (A dab of crazy glue will lock them together for life) Need to change the polarity? Simple, just cross the output wires. Got questions? Call me. Ted 514-739-8723. Converter plugs may be mixed to obtain best price. FROMTOSTOCK # 2.1/5.5mm1.3/3.4mmMG585 2.5/5.5mm1.3/3.4mm MG586 2.1/5.5mm2.5/5.5mm MG587 2.5/5.5mm2.1/5.5mm MG588 2.1/5.5mm3.0mm MG589 2.5/5.5mm3.0mm MG590 3.5mm mini plug1.3/3.4mm MG591 3.5mm mini plug2.1/5.5mm MG592 3.5mm mini plug2.5/5.5mm MG593 3.5mm mini plug3.0mm MG594

This is a single hole panel mount receptacle for the popular 2.1mm wall transformer barrel jacks. (It accepts both 5.0 & 5.5mm OD jacks) (We also have the 2.5mm version ME984 - same price) These all metal jacks mount in a 7/16" dia hole in panels up to 3/16" thick. This model features small inside solder terminal for use with both regular and ultra-thin connecting cables! Click the "more info" icon for a cklaer photo showing the solder connection.

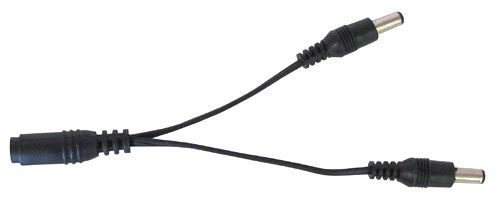

You can now use one power source for two devices. Two 2.1mm coax power plugs connected to one 2.1mm coax jack. 4" wires! Contact us today for best pricing.
