Digital Readouts

DT, Orion or Truly Brand. 16 character x 1 line LCD with LED backlight. Module size: 3.16" x 1.42". Display size: 2.6" x 0.56". Prepped with a 2" ribbon cable terminated with a 15 pin, single row socket connector (0.1" spacing). Removed from new, working equipment. Some minor scratches. Includes hook-up sheet.

Varitronix #MDL16166. 16 character x 1 line. 5 x 8 dot characters. 2.55" x 0.51" viewing area. Module size, 3.17" x 1.43". Includes hook-up sheet.

Densitron LM24B2C40ECB-HT. Module size: 7.18" x 1.32" x 0.38". Viewing area: 6.08" x 0.64". Electroluminescent backlight. Includes hook-up diagram.

Optrex #DMC40202. 5 x 9 dot characters, 0.22" high. 5.8" x 0.65" viewing area. Module size: 7.31" x 1.36" x 0.52" thick. LED backlight, yellow-green glow. Prepped with right-angle header and a 5" long ribbon cable terminated with 16 cond. (8x2) socket connector. The cable can be unplugged from the header. Includes hook-up diagram.

Optrex DMC40457N. Neutral/ blue reflective LCD. 5 x 8 dot characters. Viewing area 5.78" x 1.15". Module size: 7.5" x 2.14" x 0.35". Includes spec/ hook-up sheet.

Samtron UC4040. Module size: 7.5" x 2.13" x 0.55". Viewing area: 5.79" x 1.17". Character size: 4.89mm x 2.78mm. 5 x 8 dot format. LED backlight. Includes hook-up diagram.

1200 pieces of Hantornix 64GS24Y-4-XA1F 240x64 LCD displays. Units are brand new and still packaged in the original manufacturers packaging. Minimum quantity order is one case. There are also 800+ backlight inverters for these LCD screens available. Specs available on request.

4581 New EDT EW10061GLYU 16x2 LCD Displays with Date Codes of 0101. Spec sheet available on request. Minimum quantity order is 100 units.

Brand new EDT EW32F10NCW FSTN LCD displays. Displays are still in the original boxs. Display specs: Black background transmissive white, CCFL Backlight, 320x240 res, 167.1 X 109 X 11. Minimum quantity order is 1 box with 36 units. Specs available on request.

New Casio LMG162C17-NFPRB LCD displays. They are packaged in factory sealed boxes with 189 pcs per box and the Date codes on the units are 06/10/2000. Inventory is currently located in Mexico. Images available on request.

We have backlight inverters available for a wide range of LCD screens. We can supply inverters to power LCD screens from: Acer, Chi Mei, Citizen, Epson, Hitachi, Kyocera, LG, Mitsubishi, NEC, Optrex, Panasonic, Samsung and lots more!! All we need from you is the full OEM part number for the LCD screen that you have and if the LCD screen takes a 5V or 12V Input then we'll be able to tell you immediately if we can provide you with a suitable backlight inverter to power your LCD backlight.

All these LCD displays are brand new, unused in original factory packaging with 96 units per carton, selling in as-is condition and currently located overseas. 1) 6,000 NANYA LTA86QE08P1 3.5" LCD displays 2) 1,100 NANYA LTA86Q408P1T 3.5" LCD displays Spec sheet and photos available on request. All offers for complete quantity will be considered.

10,000 pieces of Casio PHG 32C1-T LCD Displays available. Units are new, unused and packaged with 200 pieces per box. The physical dimensions of this display are 3 3/4" x 3 1/4" and it has a 61pin flat ribbon connector with 4B0928 stamped on it. Photos available on request. Minimum quantity purchase is 200 units.

Quantities of 16x1 STN LCD displays with Hitachi driver chips. Equivalent to the PowerTip PC1601ARU-A displays. How many do you require?

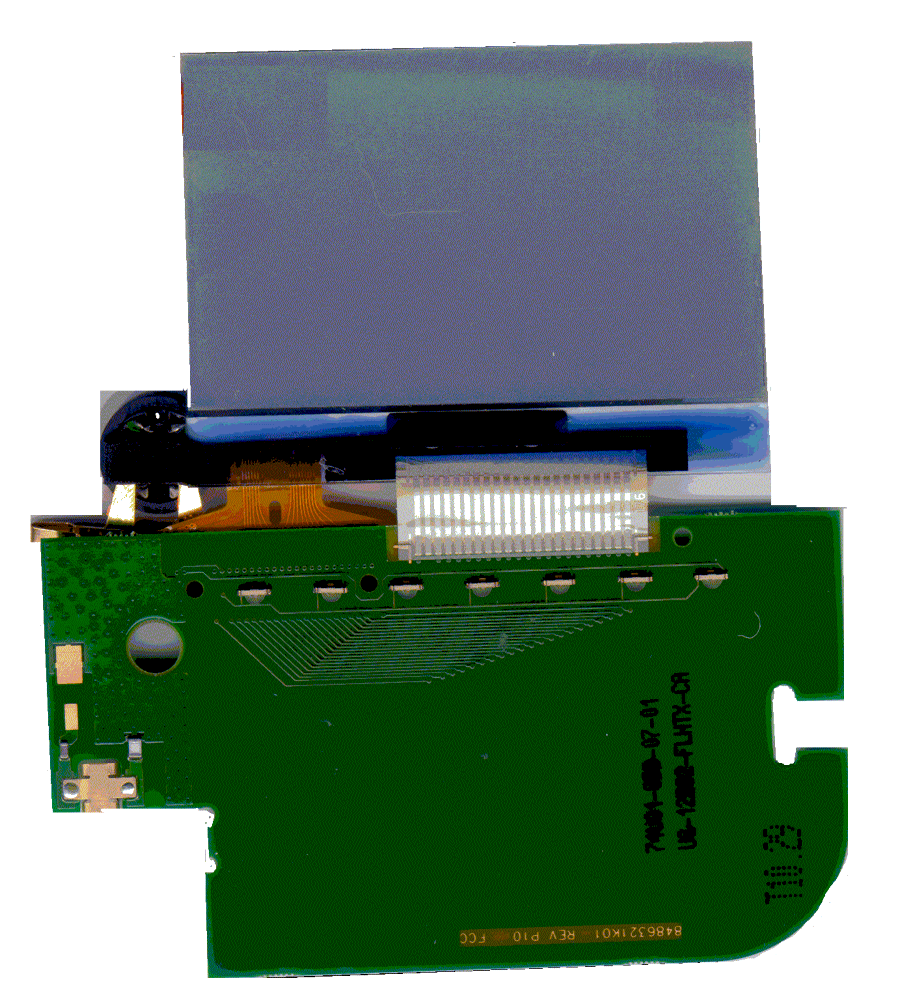

We know very little about this piece, except to say we suspect that it was manufactured by Samsung for use as part of a Motorola cellular phone or for the Motorola V100 personal communicator. Here is what is written on it; (54865T-01-N 021-1), (8486321KO1 REV. P10 FCC)), (74U01-S00-11-01), (UG-12B82-FLHTX-CR) Overall size 3-3/4" x 3-1/4".

650 New, Surplus, Standish Industries (now Planar Systems) 20x1 alphanumeric LCD displays. The part number for these is SIM201SHCLE4 and these units have date codes of 1998. They are packaged in boxes with dimensions of 3" x 8" x 12", weight of 2.5 lbs and with 14 units per box. The minimum quantity purchase is 70 pieces.

Check out this list of over 320,000 surplus LCD Drivers and controllers from Hyundai, Epson and other major manufacturers. Minimum quantity order is a complete line item.

235 brand new pieces of Varitronix Limited LXD 1017A LCD displays. Selling as one complete lot only. They are packaged in three new sealed boxes with 64 pieces each and 1 partial box of 43 pieces.

4,800 pieces of Casil 1x16 LCD modules model CCM1611C-W3. Units are made in China. Packaged 240 units in one original factory sealed box.

LOW COST 3 1/2 DIGIT LCD DISPLAY. Snap mounts into 2.1” X 1.5” chassis cutout. 2.65” X 1.59”. No bezel. 1.84” x 0.78” display. 0.5” figure height. Operates on 9-12VDC.

New Sharp LM32P10 320x240 STN LCD displays available. Minimum quantity order values apply. Contact us for a quote today!

Ongoing supply of Hundreds of New fluorescent backlight bulbs for LCD screens. Minimum order quantity is 100 bulbs. Please specify the LCD screen model for the bulb, the diagonal size of the display and the bulb's length and diameter in Millimeters (up to 5mm) since the bulb sizes can vary within the LCD size.

1,600 Epson LB18DB-BD 1.8", 312x230, LCD displays. Units are all New with date codes of 1999+. Specs available on request.

OPTREX Graphical LCD #DMF612N display 480X64 dot resolution (compatible with HITACHI LM211). Lot was bought in 1995 and the date code is 92Z1R1. The displays use the Hitachi HD61830B controller, are new, unused and individually packed in plastic bags. 160 Hitachi HD61830B controllers available with a full lot purchase. The backlights have 110 VAC Input and a few milliamps consumption, the backlight is light blue. Boxed in foam boxes with 24 units per box. Offers for full lot considered!
