COLOR DIGITAL CCD CAMERAS

Digital color CCD cameras feature 420 lines resolution. Pixels: 510 x 492 NTSC, 500 x 582 PAL. S/N r...
Read More
  • Product SKU: GF139
  • Product Name: COLOR DIGITAL CCD CAMERAS
  • Manufacturer: ELYSSA CORP
Description:

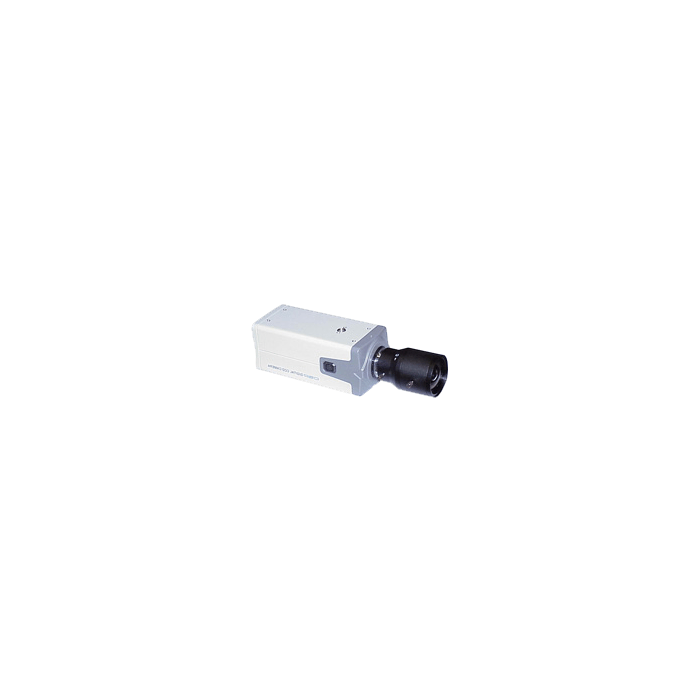

Digital color CCD cameras feature 420 lines resolution. Pixels: 510 x 492 NTSC, 500 x 582 PAL. S/N ratio: more than 48dB. Iris control: DC/video selectable. Power consumption: 2.5W max. Electronic shutter: 1/60 (1/50) to 1/100,000 sec.; Gamma correction: 0.45. Video output: 1 Vpp composite output, 75 Ohms. Dimensions: 56mm x 50mm x 135mm. CS mount for interchangeable lens. LENS NOT INCLUDED.

Part No. Sensor Day/night Min. illumination
GF140 1/3" Sharp No 0.2 Lux @ f1.2
GF141 1/3" Sony SuperHAD No 0.2 Lux @ F1.2
GF142 1/3" Sony SuperHAD No 0.1 Lux @ F1.2
GF143* 1/3" Sharp Yes 0.2 Lux @ F1.2
GF144 1/3" Sony SuperHAD Yes 0.1 Lux @ F1.2


*GF148 has two additional features: eclipse function which automatically reduces headlight glare, and mirror function for reverse image applications. Condition: New
