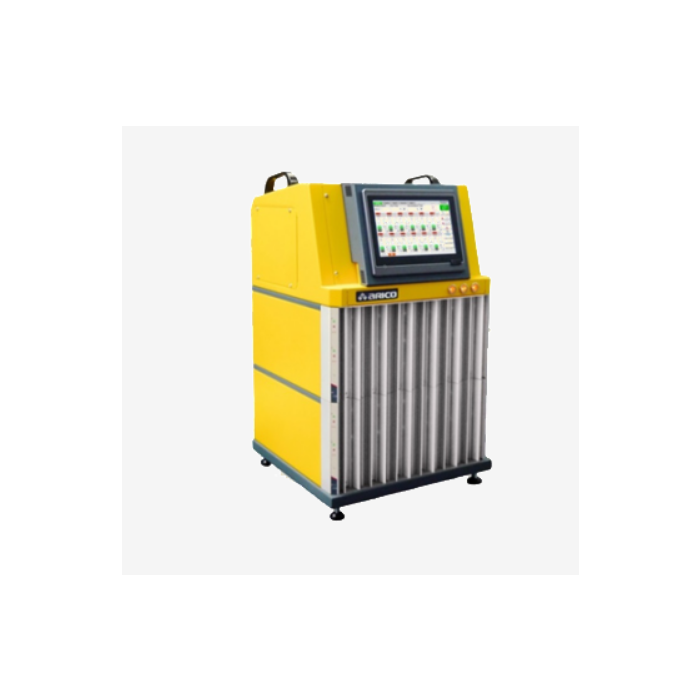

Arico TC5100
- Product SKU: TC5100
- Product Name: Arico TC5100
Arico TC5100 Features: Adjustable user perspective: 110°~145° Rack type cabinet design USB port 7” TFT SVGA LCD NAND Flash 8M +128M Module section 15A 2 zone / 30A 1 zone The module plug-in is designed for easy maintenance Specifications: Automatic ID recognition PID auto-tune temperature control Editable zone name (auto/manual) Group zones by tip or manifold Automatic shutdown for heater abnormality Current, output percentage display function Easy swapping for individual module failures Follower function for thermocouple disconnection 8 curves display (temperature, output percentage) Synchronized temperature raising/lowering Module memory (internal and external USB drive) Internal alarm buzzer (with alarm sound stop switch) Detection for heater open and short circuits RS485 communication function: ASCII and RTU mode To protect the power source input wrong witting and less phase Selectable two output trigger modes (Phase angle / Zero cross) Temperature range: Thermocouple K TYPE:0~600°C(32~999°F)/J TYPE:0~600°C(32~999°F) Self diagnosis log: (current, voltage, heater impedance, power, thermocouple, heater, fuse, TRIAC status) Group setup function Auto/Manual function Web based file output function (USB) Selectable six alarm modes Load Power Usage display per zone Detection for fuse breakage Setting for output percentage limit Power balance detection and display Thermocouple break and inverse detect Selectable two thermocouple types (J/K) Selectable two temperature scales (°C/°F)
- Product Availability: Available
