ANALOGUE SOUND LEVEL METER
- Product SKU: GD183
- Product Name: ANALOGUE SOUND LEVEL METER
- Manufacturer: -ASSORTED

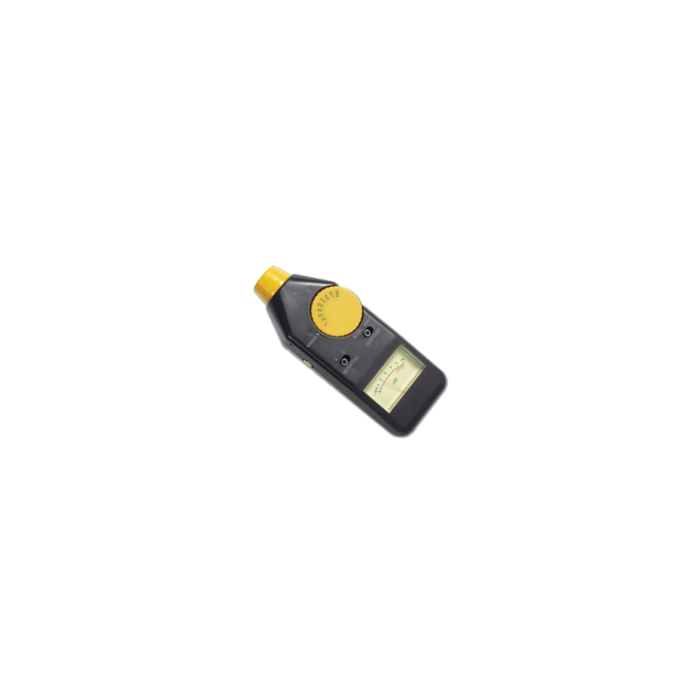

This analogue sound level meter features: 7 sound level ranges, A & C weighting for sound analysis, fast/slow response, battery level indication and RCA output jack. Specs:
- positions: 60, 70, 80, 90, 100, 110, 120dB
- load impedance: 1kohm min.
- distortion: < 2% at 1kHz, 0.5V
- microphone: electret condenser microphone, omnidirectional, directionality increases at higher frequencies
- precision: ± 2dB at 144dB
- output signal: max. 1V deviation at 1kHz for the entire range
- power supply: 1 9V battery (incl.)
- battery test: OK indication between 7 and 10.5V
- battery life: 110 operating hours (alkaline batteries)
Condition: New
- Product Availability: Available
