6A/250VAC TO 10A/125VAC ROUND PADDLE LEVER TOGGLE SWITCHES

Round, paddle-lever toggle switches. Plain black paddles or LED lamp paddles in 3 colors. These have...
Read More
  • Product SKU: GF476
  • Product Name: 6A/250VAC TO 10A/125VAC ROUND PADDLE LEVER TOGGLE SWITCHES
  • Manufacturer: PHILMORE
Description:

Round, paddle-lever toggle switches. Plain black paddles or LED lamp paddles in 3 colors. These have a current rating of 6A 250VAC, 10A 125VAC w/initial contact resistance of <50Meg Ohms @12VDC. Dielectric strength: >1500V for 1 min.; insulation resistance: >100Meg Ohms. Lamp voltage: LED 2V @ 20ma. Terminal type is solder construction, material is copper alloy with silver plated brass contact material. Body, actuator and bezel are of UL 94V-2 nylon with M18 P1.0 mounting hardware. Panel cut-out: 18mm (.70"), max. panel thickness 5.0mm. Click "more info" for specs diagram.

Part No. Type Action Actuator color
GF477 DPST On-Off Black paddle
GF478 DPDT On-On Black paddle
GF479 DPDT On-Off-On Black paddle
GF480 SPST On-Off Red LED
GF481 SPST On-Off Amber LED
GF482 SPST On-Off Green LED
GF483 SPDT On-On Red LED
GF484 SPDT On-On Amber LED
GF485 SPDT On-On Green LED
GF486 SPDT On-Off-On Red LED
GF487 SPDT On-Off-On Amber LED
GF488 SPDT On-Off-On Green LED

Condition: New

  • Product Availability: Available
SKU
GF476

Read Our Reviews

4.4
Based on 2714 reviews from certified buyers.
  • Everything in order

    Provided a detailed quote in no time. I needed the part. Done deal.

    By Steve Miller on

  • 100% OK Best regards

    These guys managed to send me the order in 3 different packages for a better shipping quote.

    By Lance Sutton on

  • They know their stuff

    Best Regards from Arizona, you made it happen, i needed this sku.

    By Carl Moore on

Add to Wishlist

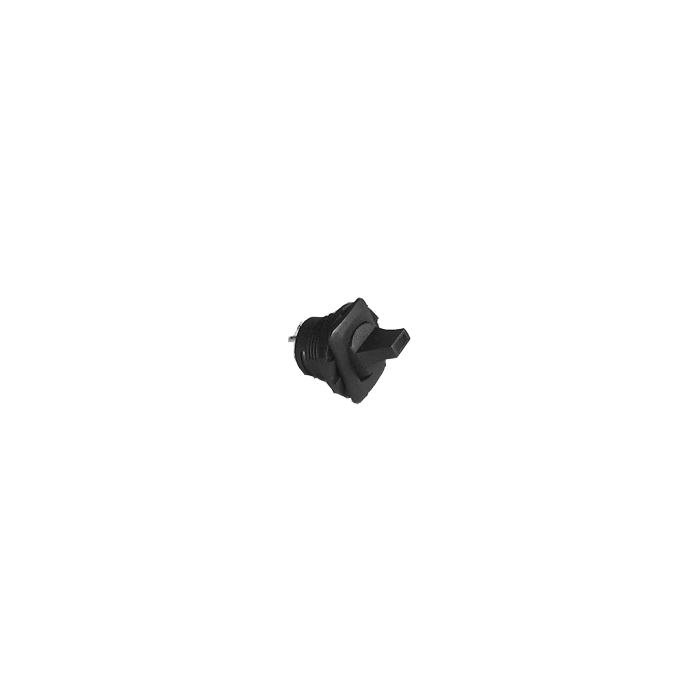

main product photo
