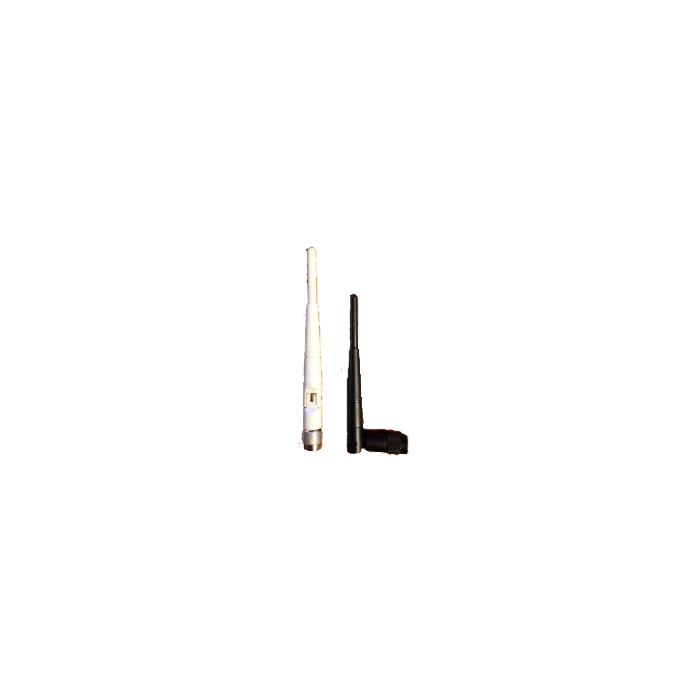

4DBI ELBOW WIDE-BAND ANTENNA
- Product SKU: YC736
- Product Name: 4DBI ELBOW WIDE-BAND ANTENNA
- Manufacturer: -ASSORTED
4dBi Elbow Wide-Band Antenna works with: GSM / CDMA / PCS / DCS / UMTS/ WCDMA / LTE. Frequency band: 700 MHz - 2700 MHz, Gain: 4.2dBi, 50 Ohm, Vertical polarization. Antenna has a max power handling of 50W. VSWR: 1.5:1 (Cellular) / 2.0:1 (PCS). Vertical Beamwidth of 15°, Horozontal Beamwidth of 360°. TNC type male connector. The casing material is UV resistant ABS. Radiation patterns are as follows: 1) Vertical: E-plane co-pol 4-dB beam-with=15 Deg. 2) Horizontal: E-plane co-pol 4-dB beam-with=360 Deg. QTY-13324 in Black, QTY-1500 in White. Looking for partial or take all offers. Condition: New
- Product Availability: Available
How can I help you?
Hi, I'm Marshall Duskes. Click on , pick up the phone, or use one of the other platforms here to get in touch with me about this product.
Toll Free:866-266-7638
International:514-619-6981
- Product SKU: YC736
- Product Name: 4DBI ELBOW WIDE-BAND ANTENNA
- Manufacturer: -ASSORTED
4dBi Elbow Wide-Band Antenna works with: GSM / CDMA / PCS / DCS / UMTS/ WCDMA / LTE. Frequency band: 700 MHz - 2700 MHz, Gain: 4.2dBi, 50 Ohm, Vertical polarization. Antenna has a max power handling of 50W. VSWR: 1.5:1 (Cellular) / 2.0:1 (PCS). Vertical Beamwidth of 15°, Horozontal Beamwidth of 360°. TNC type male connector. The casing material is UV resistant ABS. Radiation patterns are as follows: 1) Vertical: E-plane co-pol 4-dB beam-with=15 Deg. 2) Horizontal: E-plane co-pol 4-dB beam-with=360 Deg. QTY-13324 in Black, QTY-1500 in White. Looking for partial or take all offers. Condition: New
