1GHZ 90DB VERTICAL F-SPLITTERS
- Product SKU: GD461
- Product Name: 1GHZ 90DB VERTICAL F-SPLITTERS
- Manufacturer: -ASSORTED

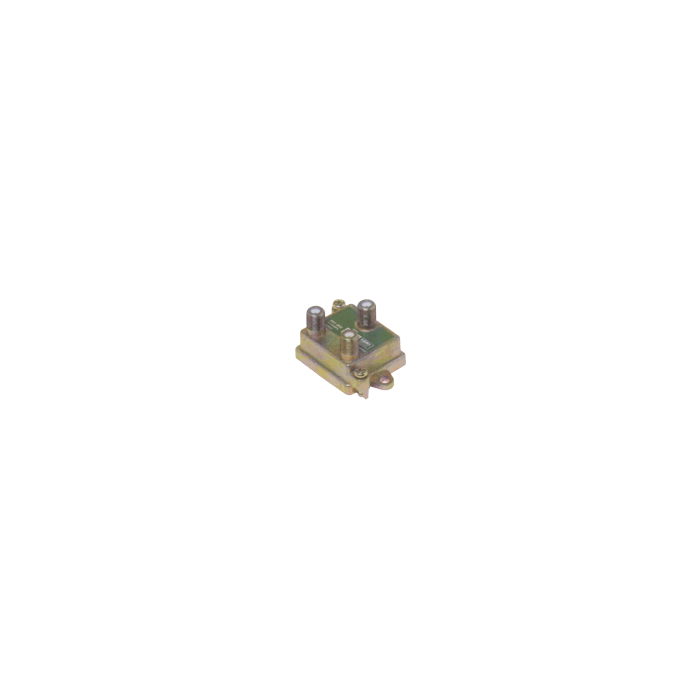

5-1000MHz 75 ohm, 1GHZ 90DB high isolation F-splitters. Vertical port design, 90dB min RFI shielding, epoxy-sealed back cover. High-performance printed-board circuitry, 3/8" precision machined F-connector threads. Mounting tabs with screws - cast-in ground block. 1" centered F-ports accomodate security tools.
P/N | Type | Insertion loss | Port-port Isolation | Input return loss |
---|---|---|---|---|
GD462 | 3-way | 7dB max. | 20dB min. | 18dB min. |
GD463 | 2-way | 4.2dB max. | 25dB min. | 18dB min. |
GD464 | 4-way | 8.1dB max. | 24dB min. | 18dB min. |
GD465 | 6-way | 11.5dB max. | 22dB min. | 20dB min. |
GD466 | 8-way | 12.5db max. | 21dB min. | 20dB min. |
Condition: New
- Product Availability: Available
