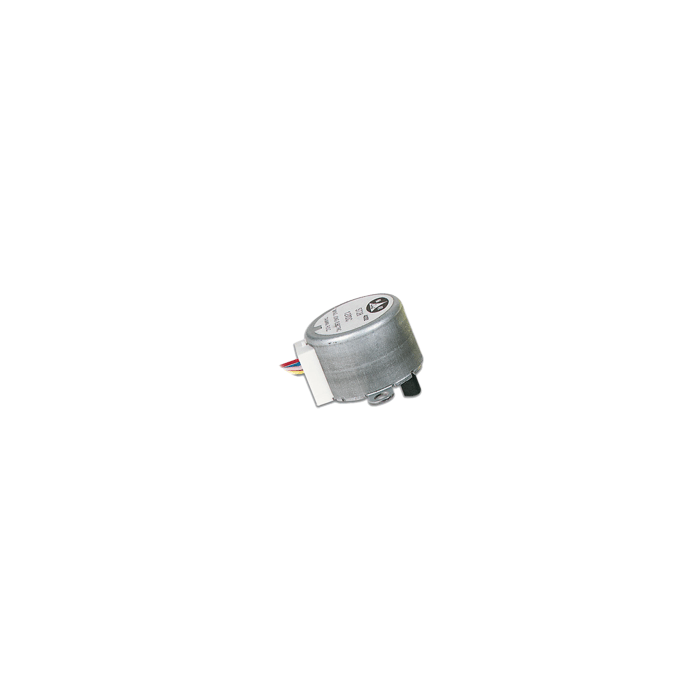

12VDC STEPPER MOTORS

12VDC stepper motor 32mA, good for such applications as office machines, automatic machines and spli...
Read More
  • Product SKU: GD242
  • Product Name: 12VDC STEPPER MOTORS
  • Manufacturer: -ASSORTED
Description:

12VDC stepper motor 32mA, good for such applications as office machines, automatic machines and split air conditioners. Specs:
- resistance: 280 ohms
- rated voltage: 12V DC
- current: 32mA
- impedance: 380ohm
- phase: 4
- step angle / step: 5.625° / 64
- reduction ratio: 1/64
- detent torque: 4.86oz-in
- pull-in torque: 4.17oz-in
- max. starting pulse rate: 550pps
- max. slewing pulse rate: 90pps
- temperature range: 77°F
- noise: 40dB
- cable: 420mm AWG 1095#28
- terminal: JST SPH-002T-P0.5S
- insulation strength: AC 600V - 1 sec cut-off current: 10mA
Click "more info" for additional specs. Condition: New
